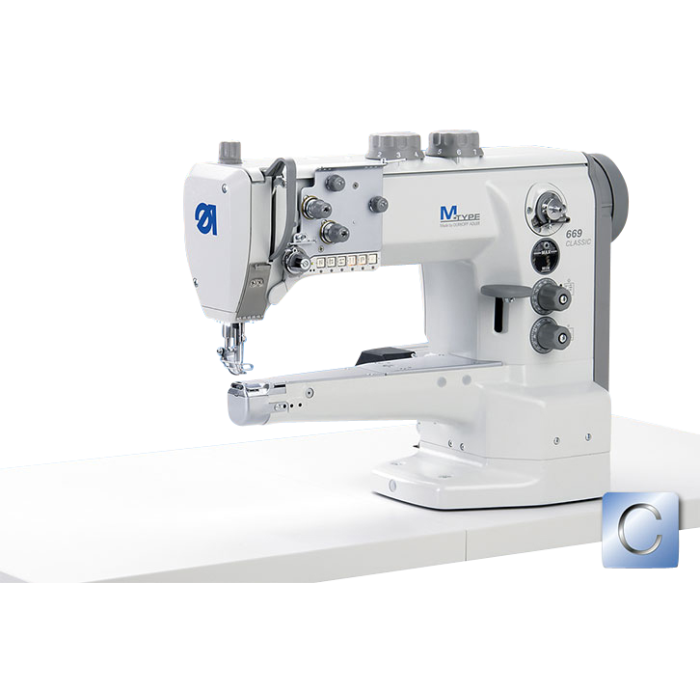

Durkopp Adler 669-180312

M-TYPE 669 CLASSIC Goldline - cylinder arm ma­chine with a horizontal hook for perfect handling of tubular workpieces

Field of application:

Assembly and binding operations as well as decora­tive stitching in small leather goods, tubular work­ pieces and headrests

Performance features:

• Max. stitch length 9 mm
• Max. sewing speed 3,000 stitches/min.
• Max. alternating sewing foot stroke 9 mm
• Max. sewing foot lift 20 mm

Overview:

• Slim machine arm diameter of 50 mm in connec­tion with large L hook (26 mm) and thread trim­mer
• Disconnectable bottom feed stroke for binding op­erations
• Quick conversion to binding applications by chang­ing the sewing equipment
• Equipped with automatic basic functions and fur­ther functions like integrated second stitch length, integrated second thread tension, quick stroke ad­justment
• Lubricating system with adjustable hook lubrication
• Thread trimming system for sewing threads up to max. Tkt. 15/3
• Safety clutch protects against hook damage
• Maintenance-friendly design
• High productivity due to excellent sewing parame­ters
• Sewing drive fastened at the machine head with networkable "DAC classic" control incl. operating panel OP1000 - Industry 4.0 "ready"
• Also available as CLASSIC Silverline (669-180112), equipped with automatic basic functions
